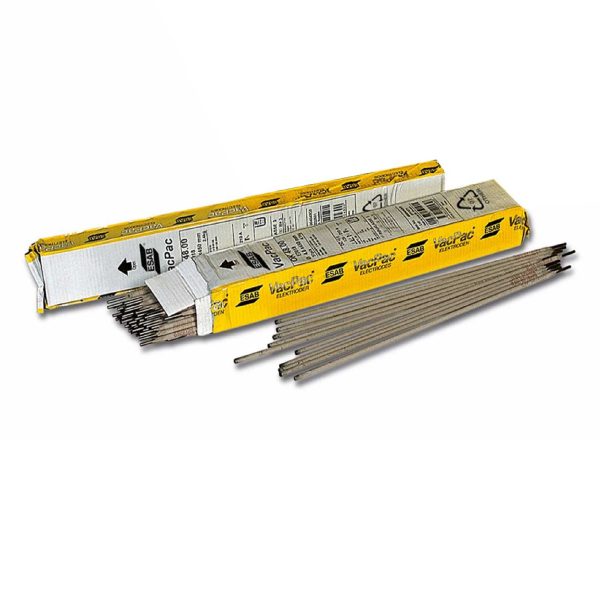

OK Weartrode 30
| Classifications | EN 14700:E Z Fe1 |
| Approvals | CE : EN 13479 DB : 82.039.07 |
Approvals are based on factory location. Please contact ESAB for more information.
| Welding Current | DC+(-) |
| Alloy Type | Martensitic steel |
| Coating Type | Lime Basic |
Typical Weld Metal Analysis %
| C | Mn | Si | Cr |
| 0.1 | 0.7 | 0.7 | 3.2 |
Deposition Data
| Diameter | Current | Voltage | kg weld metal/ kg electrodes | Number of electrodes/kg weld metal | Fusion time per electrode at 90% I max |
Deposition rate 90% I max |
| 2.5 x 350 mm | 60-90 A | 20 V | 0.64 | 69 | 75 s | 0.7 kg/h |
| 3.2 x 450 mm | 100-140 A | 21 V | 0.66 | 34 | 88 s | 1.2 kg/h |
| 4.0 x 450 mm | 140-190 A | 22 V | 0.66 | 23 | 92 s | 1.7 kg/h |
| 5.0 x 450 mm | 190-260 A | 23 V | 0.68 | 15 | 86 s | 2.8 kg/h |
| 6.0 x 450 mm | 230-320 A | 23 V | 0.68 | 11 | 92 s | 3.7 kg/h |
