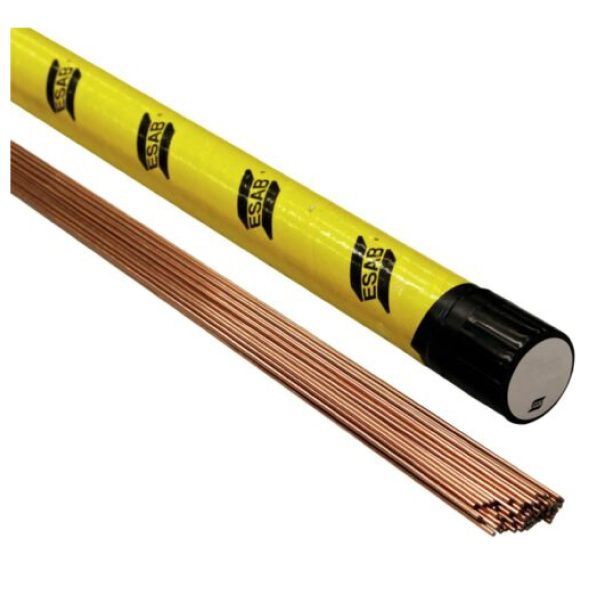

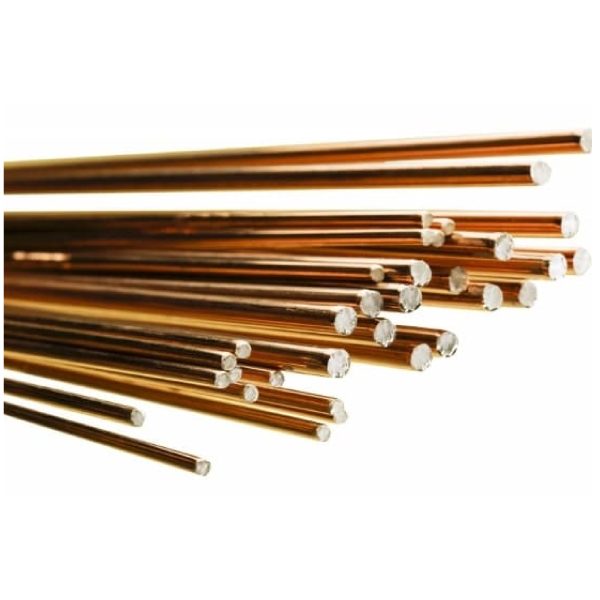

OK Tigrod 13.09
| Classifications | EN ISO 636-A : W 46 2 W2Mo EN ISO 636-A : W2Mo EN ISO 21952-A : W MoSi EN ISO 21952-B : W 52 1M3 SFA/AWS A5.28 : ER70S-A1 (ER80S-G) |
| Approvals | CE : EN 13479 DB : 42.039.08 DNV-GL : III YMS (I1) NAKS/HAKC : 2.0MM-3.2MM VdTÜV : 04950 |
Approvals are based on factory location. Please contact ESAB for more information.
| Alloy Type | Low alloyed steel (0.5 % Mo) |
Typical Wire Composition %
| C | Mn | Si | Ni | Cr | Mo |
| 0.094 | 1.09 | 0.61 | 0.05 | 0.05 | 0.45 |
Typical Tensile Properties
| Condition | Yield Strength | Tensile Strength | Elongation |
| AWS Ar (I1) | |||
| As welded | 520 MPa | 620 MPa | 27% |
| PWHT 620°C 1h | 510 MPa | 610 MPa | 28% |
| EN Ar (I1) | |||
| PWHT 620°C 1h | 450 MPa | 550 MPa | 31% |
| As welded | 490 MPa | 600 MPa | 30% |
Typical Charpy V-Notch Properties
| Condition | Testing Temperature | mpact Value |
| AWS Ar (I1) | ||
| As welded | -29 °C | 150 J |
| As welded | -46 °C | 130 J |
| PWHT 620°C 1h | -20 °C | 220 J |
| EN Ar (I1) | ||
| As welded | 20 °C | 180 J |
| As welded | -20 °C | 160 J |
| As welded | -40 °C | 90 J |
| As welded | -60 °C | 25 J |
| PWHT 620°C 1h | 20 °C | 190 J |
| PWHT 620°C 1h | -20 °C | 170 J |
