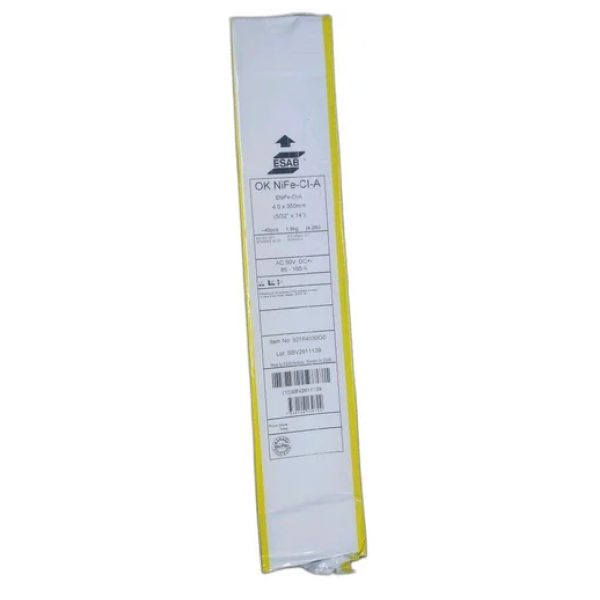

OK NiFe-CI
| Classifications | SFA/AWS A5.15 : ENiFe-CI EN ISO 1071 : E C NiFe-1 3 |
Approvals are based on factory location. Please contact ESAB for more information.
| Welding Current | AC, DC± |
| Alloy Type | Ni-Fe alloy |
| Coating Type | Basic Special high graphite |
Typical Tensile Properties
| Testing Condition | Yield Strength | Tensile Strength |
| ISO | ||
| As welded | 380 MPa | 560 MPa |
Typical Weld Metal Analysis %
| C | Mn | Si | Ni | Al | Cu | Fe |
| 0.9 | 0.6 | 0.5 | 53 | 0.4 | 0.9 | 44 |
Deposition Data
| Diameter | Current | Voltage | kg weld metal/ kg electrodes |
Number of electrodes/kg weld metal |
Fusion time per electrode at 90% I max |
Deposition rate 90% I max |
| 2.5 x 300 mm | 60-100 A | 22 V | 0.70 | 85.0 | 45 s | 0.8 kg/h |
| 3.2 x 350 mm | 80-150 A | 23 V | 0.70 | 44.0 | 56 s | 1.20 kg/h |
| 4.0 x 350 mm | 100-200 A | 23 V | 0.70 | 30.0 | 59 s | 1.60 kg/h |
